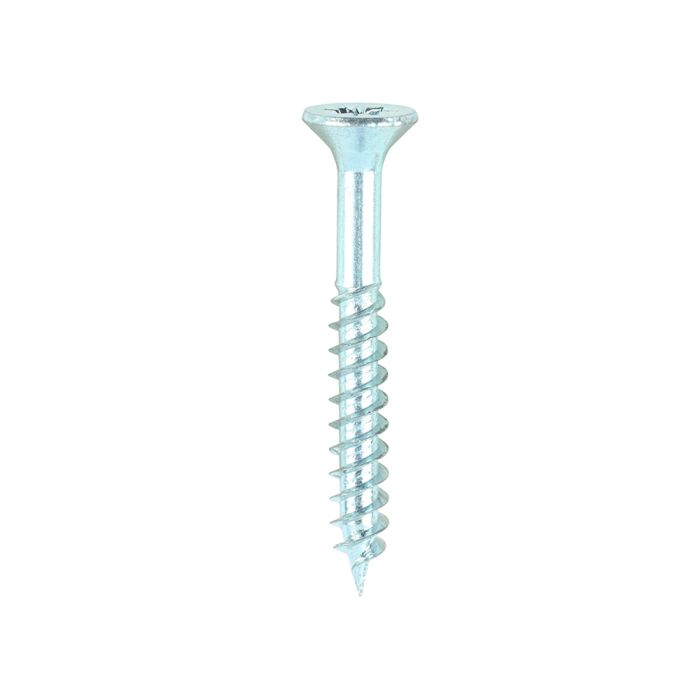

7 X 1 1/4 Twin-Thread Screws C/Sunk Z/Plated Box 200

SKU
JPR-70004043
A traditional twin-thread woodscrew with single lead start for a fast installation. Mainly used in soft timber applications or masonry with a plastic plug. NOTE: Partially threaded.



Double countersunk head reduces the likelihood of head shear and assists completion of countersinking

Partially threaded from 1 1/4” and above

Made from C10-18 steel to ensure consistent quality

60° twin-threads with parallel shank for faster insertion and greater pull-out resistance

Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility

25° sharp point and single lead for a fast start and improved thread acceptance

Gauge : 7

Length inch : 1 1/4

Recess Type : Pozi

Point Type : 25° Sharp
£4.81 £4.01
/ Each

Sign in or Register for trade prices
A traditional twin-thread woodscrew with single lead start for a fast installation. Mainly used in soft timber applications or masonry with a plastic plug. NOTE: Partially threaded.



Double countersunk head reduces the likelihood of head shear and assists completion of countersinking

Partially threaded from 1 1/4” and above

Made from C10-18 steel to ensure consistent quality

60° twin-threads with parallel shank for faster insertion and greater pull-out resistance

Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility

25° sharp point and single lead for a fast start and improved thread acceptance

Gauge : 7

Length inch : 1 1/4

Recess Type : Pozi

Point Type : 25° Sharp
Features
More Information
Manufacturer Name T I MIDWOOD & CO LTD
MPN 07114CWZ
Product Finish Zinc
Manufacturer Bullet 10 Point Type : 25° Sharp
Length mm 33mm
Width mm 3.9mm
Product Material Carbon Steel
Product Net Weight kg 0.352
Manufacturer Bullet 1 Double countersunk head reduces the likelihood of head shear and assists completion of countersinking
Manufacturer Bullet 2 Partially threaded from 1 1/4” and above
Manufacturer Bullet 3 Made from C10-18 steel to ensure consistent quality
Manufacturer Bullet 4 60° twin-threads with parallel shank for faster insertion and greater pull-out resistance
Manufacturer Bullet 5 Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Packaged Length mm 94mm
Manufacturer Bullet 6 25° sharp point and single lead for a fast start and improved thread acceptance
Packaged Width mm 72mm
Product Certifications BS EN 14592:2008
Manufacturer Bullet 7 Gauge : 7
Pallet Cage Width mm 286mm
Manufacturer Bullet 8 Length inch : 1 1/4
Pallet Cage Length mm 396mm
Pallet Cage Height mm 196mm
Manufacturer Bullet 9 Recess Type : Pozi
Pallet Cage Weight kg 17.5
Pallet Cage Barcode 5055017500666
